工作原理

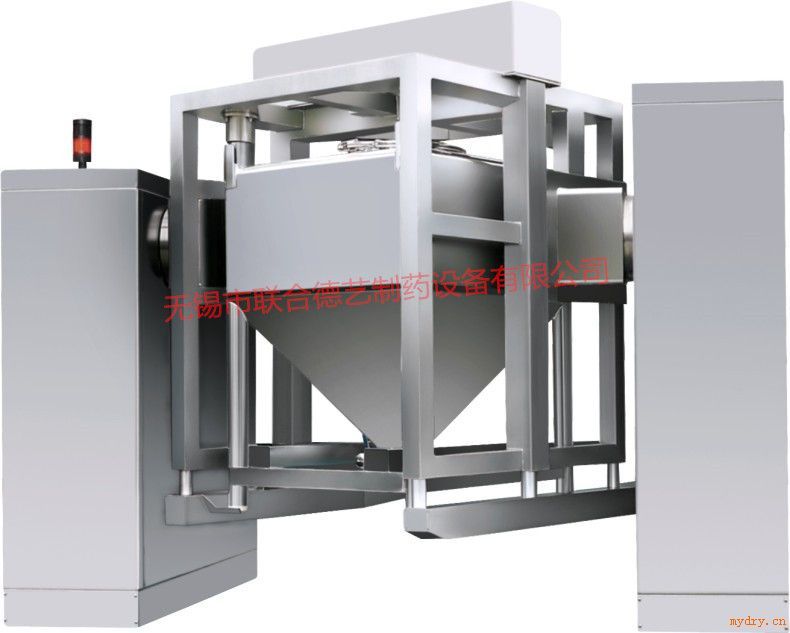

該機由機座、回轉體、驅動系統、提升下降系統、制動系統及控制系統組成。工作時，將混合料斗推到回轉體內，進入自動操作程序輸入已經設置好的參數組程序代號，按觸摸屏上“確認”鍵，就能自動將混合料斗提升到位，并自動夾緊。PLC控制系統得到夾緊信號后，驅動系統工作，按設定的時間、轉速進行混合；達到設定的參數后，回轉體就能自動垂直停止，同時制動系統工作，混合結束；然后進入手動操作程序，按“下降”鍵，回轉體內的混合料斗下降到位，自動停止，并打印工藝數據。將混合料斗推出轉到下一工序。
Working principle
This equipment is composed of frame, rotating cage; drive, lifting,
brake and control systems. When operating, firstly, load the bin in the
rotating cage and press "confirm" key on the touch panel, the bin
will be automatically raised in position and clamped. On recep-tion of clamped
signal by the sensors, the drive system starts blending task according to the
set time and rotation speed. On reaching all the set parameters, the brake
system operates automatically to stop the rotating cage to a horizontal
position and the blending task is finished. Then, the lifting system works to
lower the bin on the ground and on reaching that position, it stops
automati-cally. Finally, data of this batch are printed. Move out the bin from
the rotating cage to transfer it for the next process.
